From Parts truck to next full custom Starting interior Deconstruction begins Front end removed
    Suspension and existing engine removed Firewall stripped engine removed Brake pedals and steering column removed
Stock steering mount and other factory holes All existing brackets removed Filling the holes begins All steering holes in the frame are filled
Rear end removed Factory firewall removed New front suspension crossmember installed
Frame notched to clear new rack and pinion steering. Floor removal in progress We were able to save some of the floor. Front suspension waiting for some LCA to arrive. Truck will ride on coilovers
Front suspension. 5 lug and disc brakes added New floor in action New firewall in. Close up of the UCA and coil over mount
    Parallel 4 link in Coil over shocks installed
    Brad getting down on the rear frame plating Rear Coil-over mount
  Rear suspension complete. Parallel 4 link with a panhard bar Just some close ups of the welding performed on the project

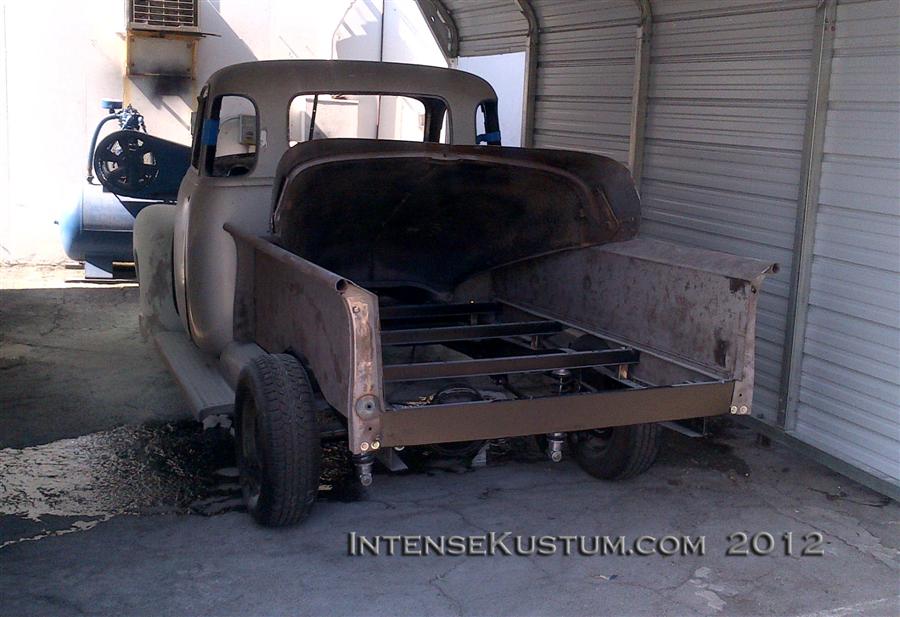

New engine in place. Front suspension completed Body blasted next up bodywork Bed in place suspension complete New floors complete
Bodywork continues Front end and firewall bodywork New dash installed and ready to go. Bodywork being performed

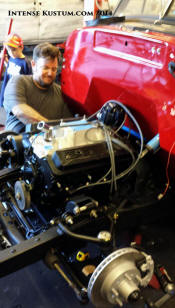

Back from paint at the owner's house Scott's truck is back for completion   Cleaning up the suspension, installing a freshly rebuilt engine and working on getting the headers in. The Chevy is progressing along.
      Back for some details. Restaining and sealing the bed. Short list of items to complete then back out it goes.

2020 upgrades

The factory gauges are being replaced with direct fit Dakota Digital units.

We will be changing out the steering rack to a unit with a slightly slower response to mark the truck easier to drive.

Existing Stock gauges New Dakota Digital gauges   Gauges installed and ready to go.
