• As delivered.
  • Rear height
  • Front suspension begins. Wheel tubs in the engine compartment
  • Factory setup
  • Front had helper bags
  • Suspension removed. Frame sanded
  • Repainted front frame

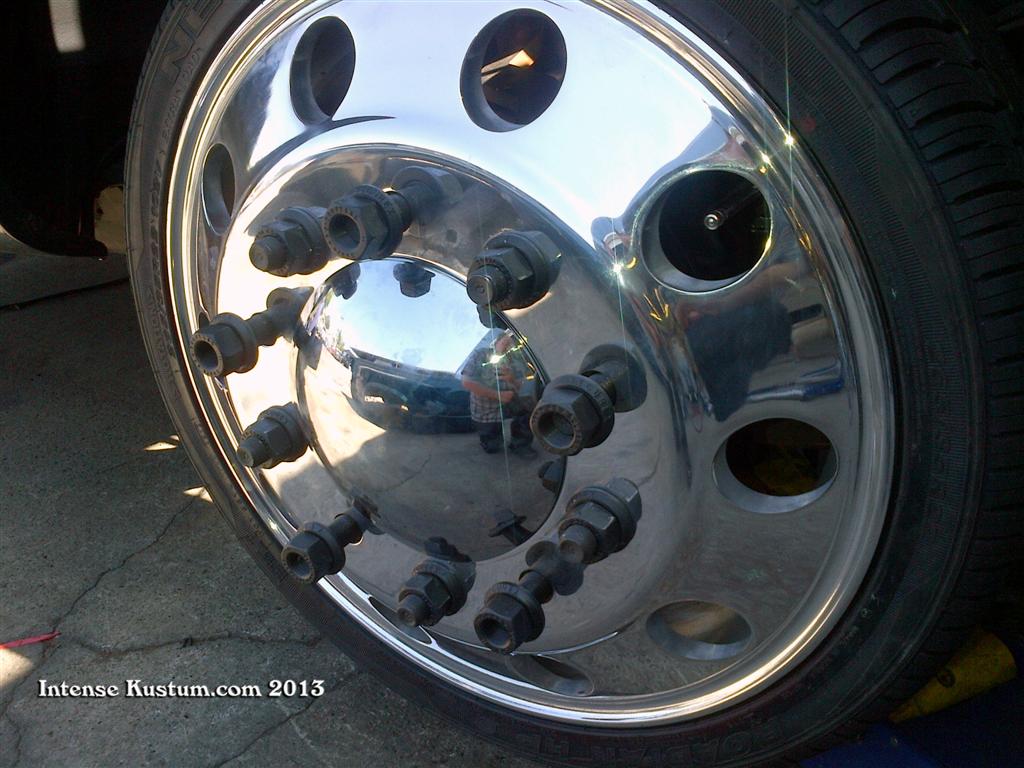

  • 3/4 ton hubs and adapters for the new 22's

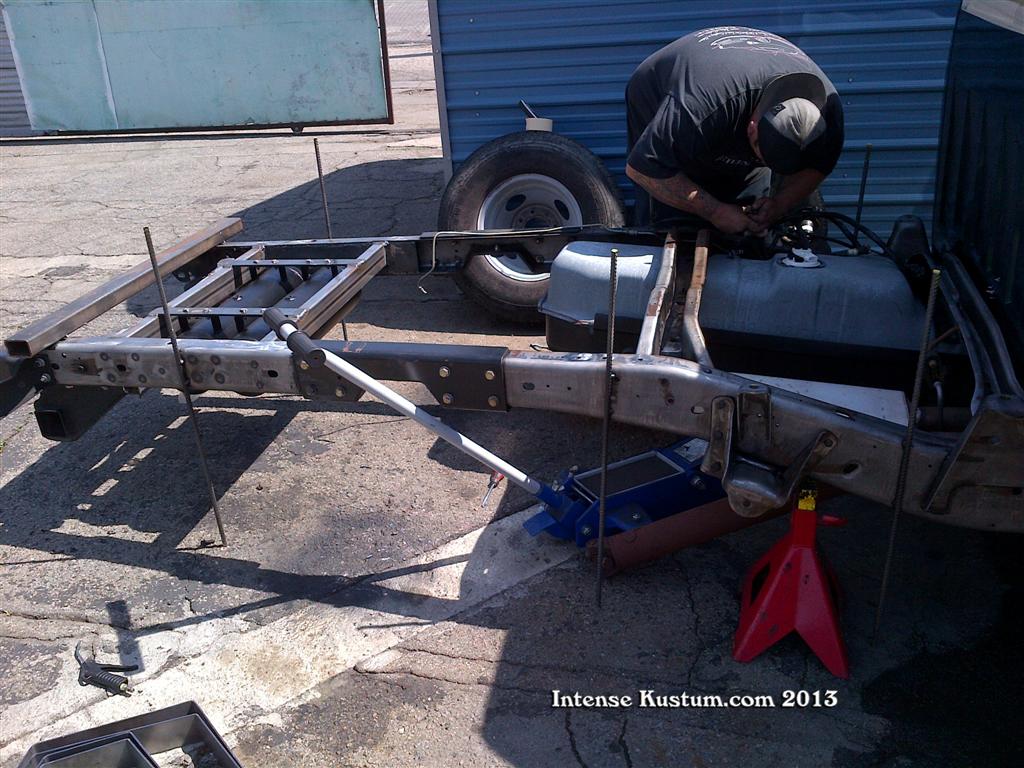

  • Rear suspension removed. Dropping the 3500 gas tank. Air tanks and compressors mounted
  • Air tanks and compressors mounted

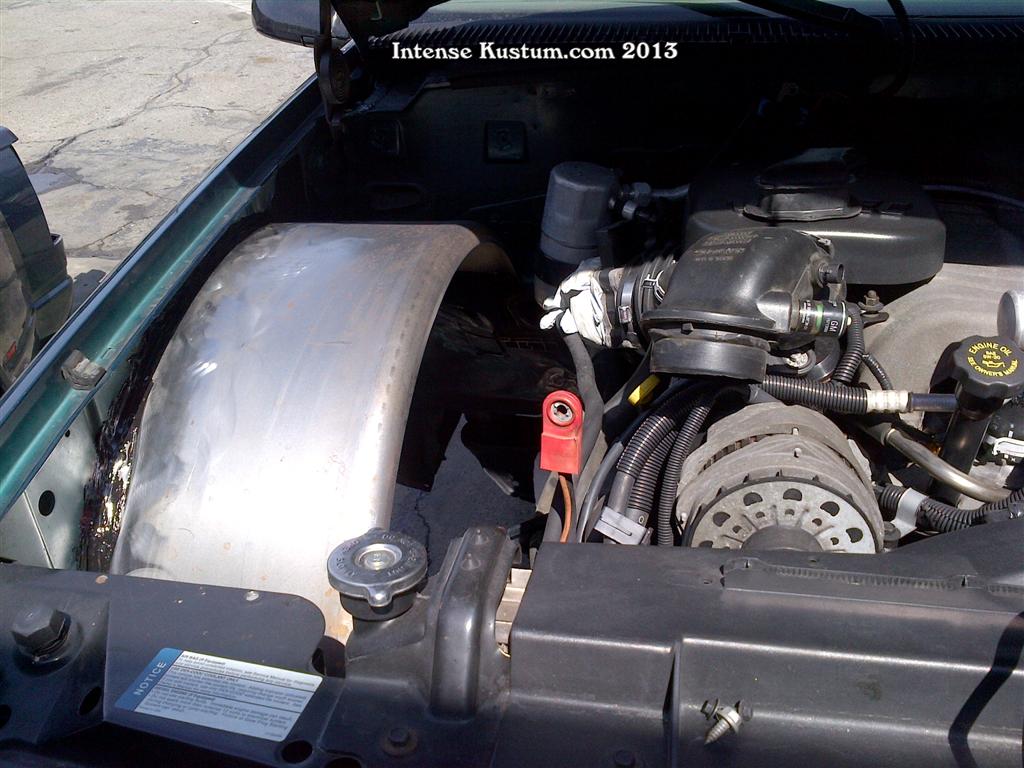

  • Wheel tubs almost complete
  • Relocation underway on the driver side.
  • Cutting factory inner fender begins
  • Tank removed
  • New larger notch completed

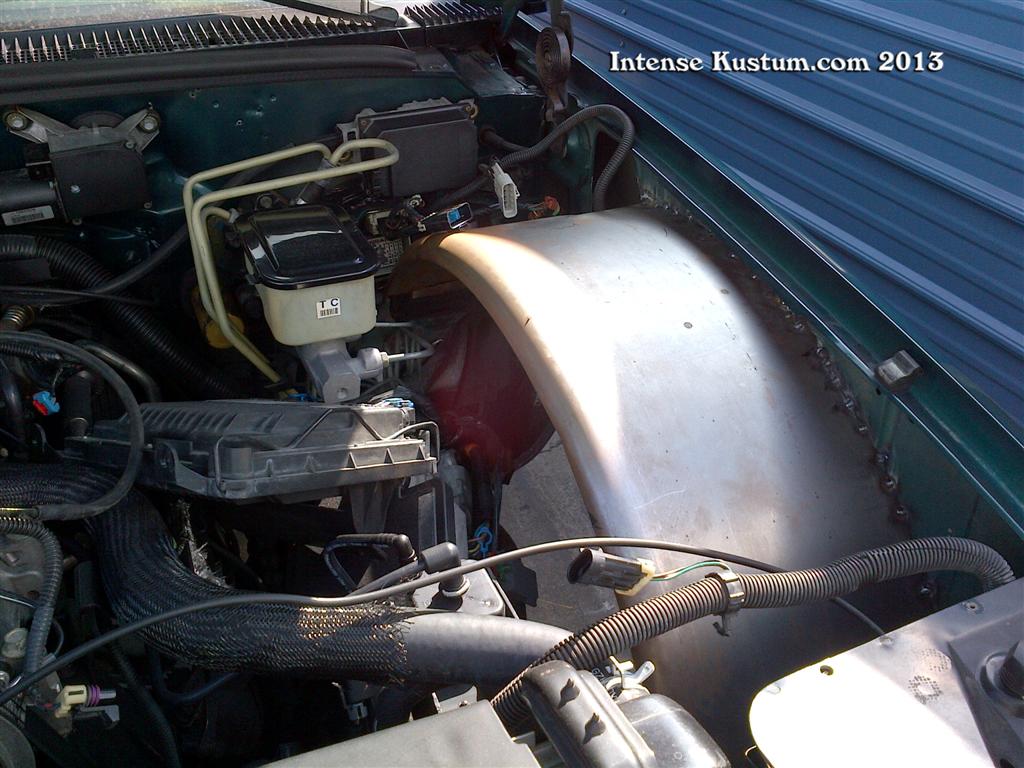

  • Drive side tub in place

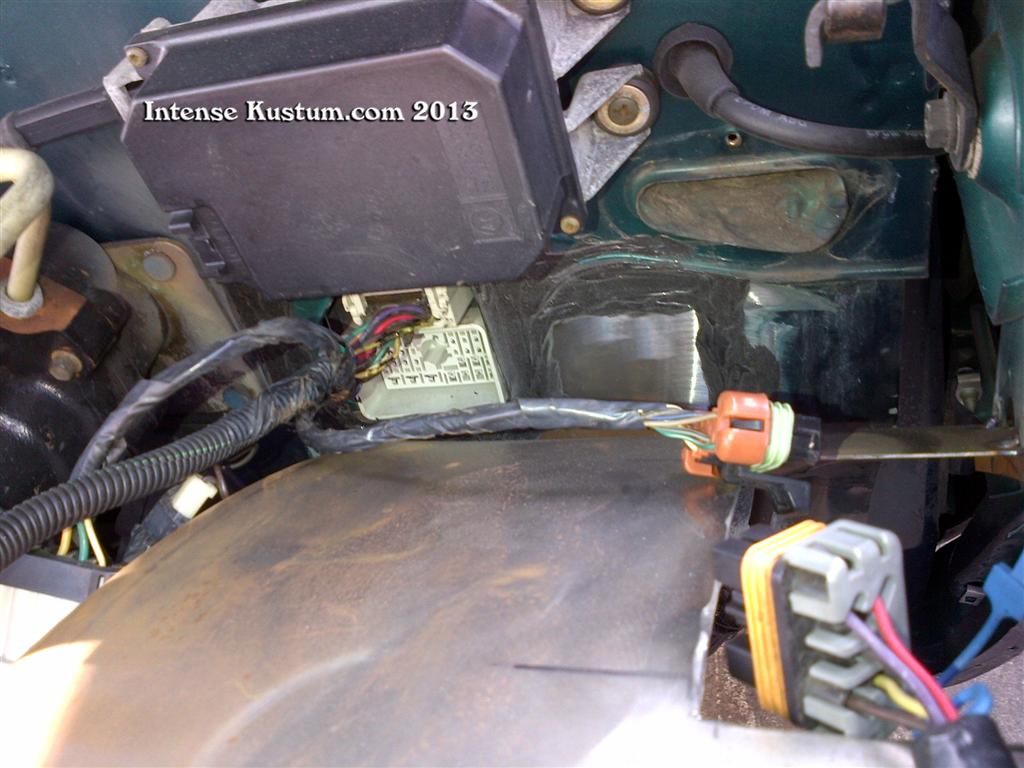

  • existing harnesses moved up and over to clear the tires.
  • existing harnesses moved up and over to clear the tires.

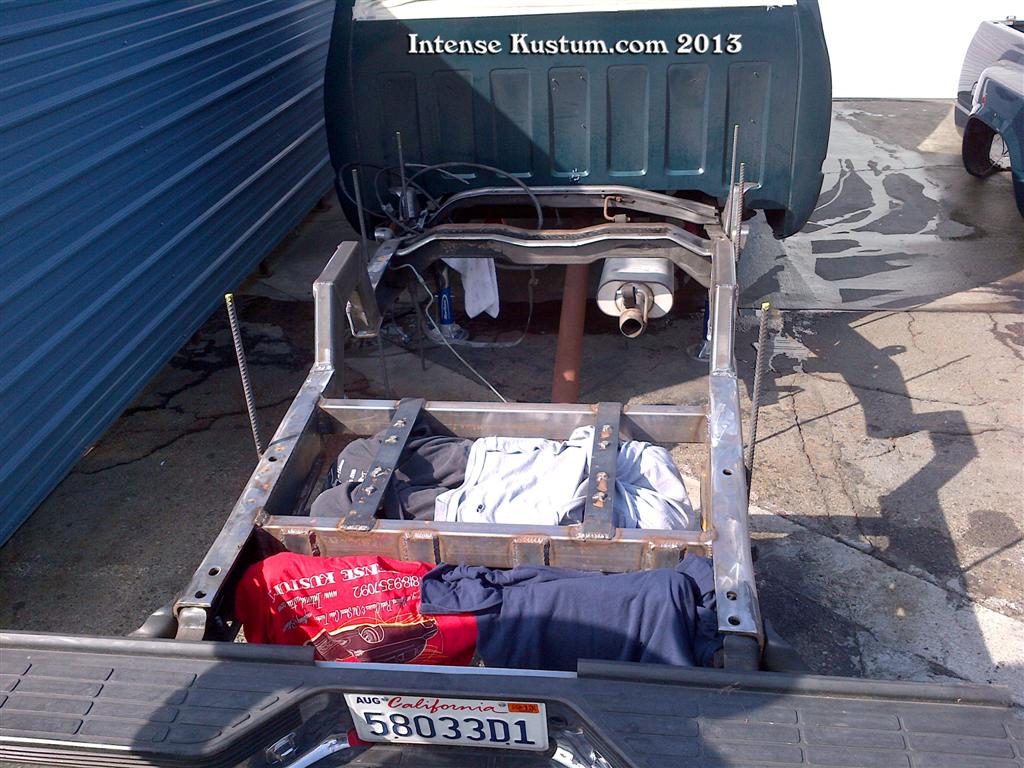

  • New narrowed rear end back in
  • Crossmembers notched
  • Crossmembers notched
  • Wheel tubs and modifications painted. Everything reassembled
  • A view of the modified firewall and other relocated pieces.

  • A view of the completed engine compartment
  • A shot of the links for the rear.
  • New control arms in. Testing suspension movement.
  • 22's mounted in the front
  • A shot of the front end compressed
  • New upper control arms
  • New upper shock mounts

  • New wishbone in
  • lower bag mounts in
  • Digital controls for the air ride
  • Upper bag mounts in progress
  • Tubing for the upper mounts underway
  • Brad welding in the braces for the upper mounts
  • More welding on the mounts
  • All the tubing tacked in place
  • Brad finish welding the upper bag mounts

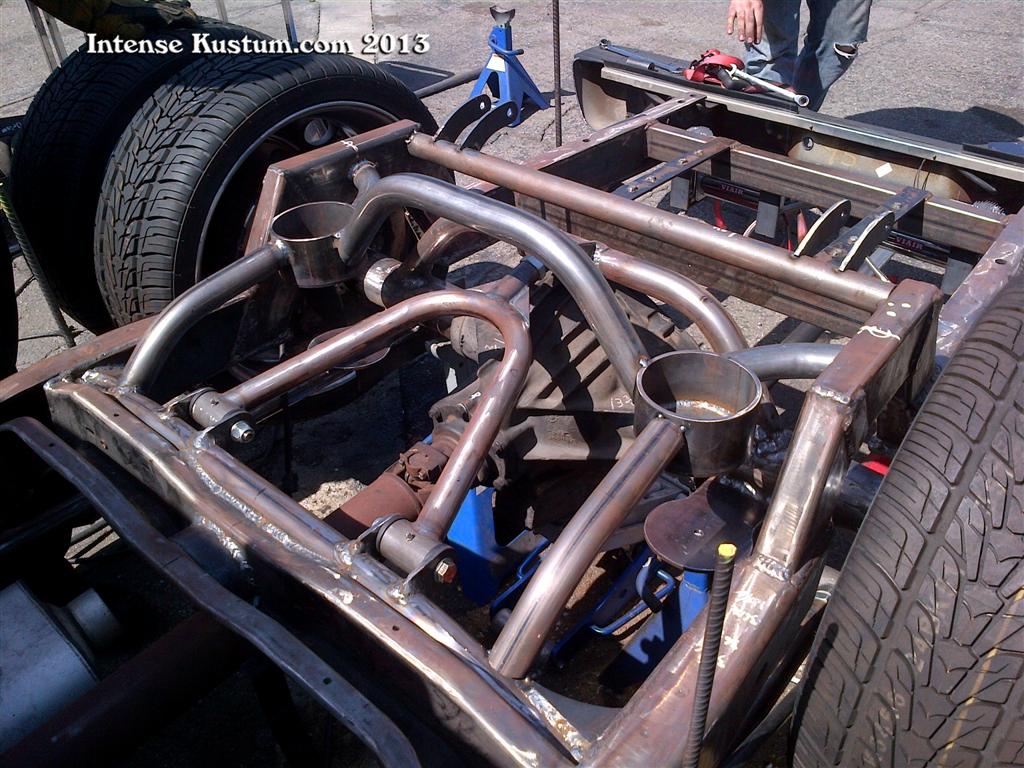

  • A shot of the completed tubing
  • Upper shock mounts and a shot of the valves
  • Another shot of the upper bag mount
  • Rear frame painting
  • Rear frame painting
  • Rear frame painting
  • Rear frame painting
  • Rear frame painting
  • Truck back on its wheels locked up

  • Completed rear suspension
  • Completed rear suspension
  • Truck airred out.
  • Bed cut for clearance

  • Truck Laid out
  • Rear fenderwells and its done.
  • Rear fenderwells underway.
